Our Products(we manufacture)

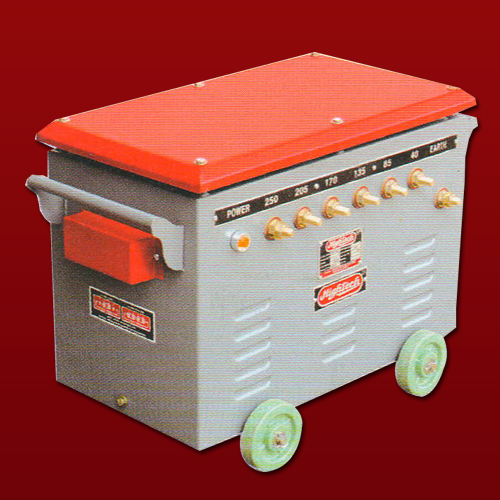

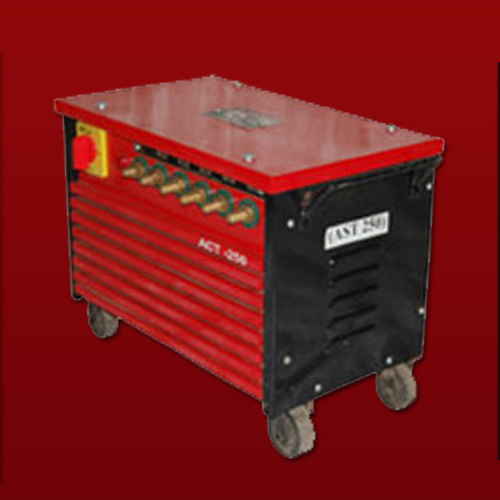

ARC WELDING TRANSFORMERS

Particulars Stud Type
KVA 4 6 8 10
Normal Current Amp 150 150 200 250
Primary Voltage Volts 230 220/440 220/440 220/440
Phase 1 1-2 1-2 1-2
Frequency(Hurtz) 50 50 50 50
Open Circuit Voltage(Volts) 50 50 55 55
Conti. 100% Duty per Cycle 70 90 120 150
Current 50% Duty Amp. per Cycle(Amp) 90 150 200 2850
Electode(min. mm) 2 2 2 2
Size (max. mm) 3.15 3.15 4 5
Machine (Hi. mm) 325 400 455 455
Max Approx (L. mm) 410 600 700 700
Diamension (W. mm) 260 370 390 390
Approx Weight (Kg)
Aluminum Waunds 27.5 43 53 69
Copper Waunds 30 55 63 83

ARC WELDING TRANSFORMERS

Particulars Heavy Duty
KVA 15 21 15
Normal Current Amp 300 400 300
Primary Voltage Volts 220/440 220/440 440
Phase 1-2 1-2 3
Frequency(Hurtz) 50 50 50
Open Circuit Voltage(Volts) 60 60 60
Conti. 100% Duty per Cycle 180 240 180
Current 50% Duty Amp. per Cycle(Amp) 300 400 300
Electode(min. mm) 2 2.5 2.5
Size (max. mm) 5 5 5
Machine (Hi. mm) 500 500 500
Max Approx (L. mm) 830 830 880
Diamension (W. mm) 440 440 440
Approx Weight (Kg)
Aluminum Waunds 82 95 100
Copper Waunds 105 120 120

ARC WELDING TRANSFORMERS

Particulars Regulator Type
KVA 21 15 21
Normal Current Amp 400 300 400
Primary Voltage Volts 440 440 440
Phase 3 2 2
Frequency(Hurtz) 50 50 50
Open Circuit Voltage(Volts) 60 60 60
Conti. 100% Duty per Cycle 240 210 280
Current 50% Duty Amp. per Cycle(Amp) 400 300 400
Electode(min. mm) 2.5 2.5 2.5
Size (max. mm) 6.3 5 6.3
Machine (Hi. mm) 500 590 590
Max Approx (L. mm) 880 725 725
Diamension (W. mm) 440 560 560
Approx Weight (Kg)
Aluminum Waunds 110 114 126
Copper Waunds 130 127 141

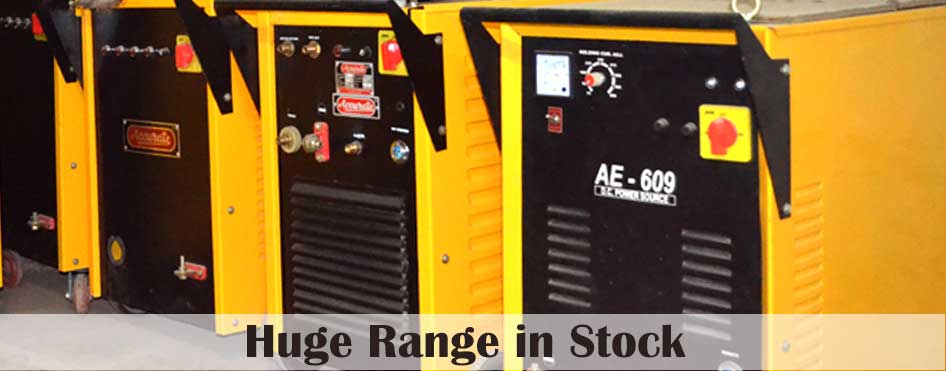

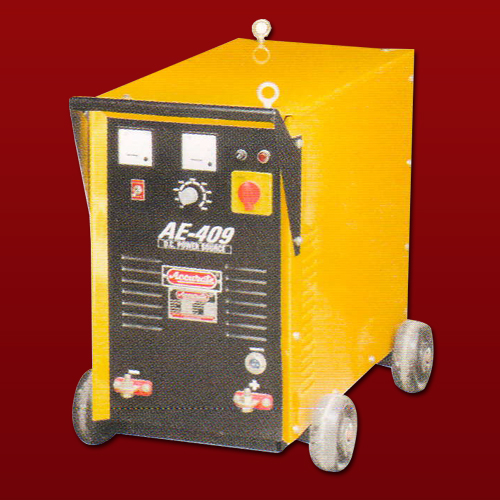

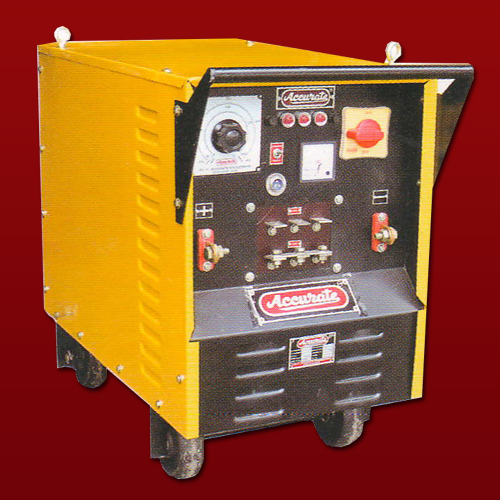

Thyristrorised welding Rectifiers

Models AE - 409 AE - 609
In put Supply 415 Volts, 3 Phase, 50Hz AC 415 Volts, 3 Phase, 50Hz AC
Max welding current @ 60% 400 Amps 600 Amps
Duty Cycle
Welding current range
Max open circuit voltage 90 Volts DC 90 Volts DC
Rating (KVA) 22 KVA 40 KVA
Cooling Forced Air Forced Air
Suitable for wire Steel
Weight 165 Kgs 185 Kgs
Diamension (LxWx H) mm 840 x 500 x 750 mm. 970x 550x 800 mm.
No. of Voltage Setti
Insulation class 'F' 'F'

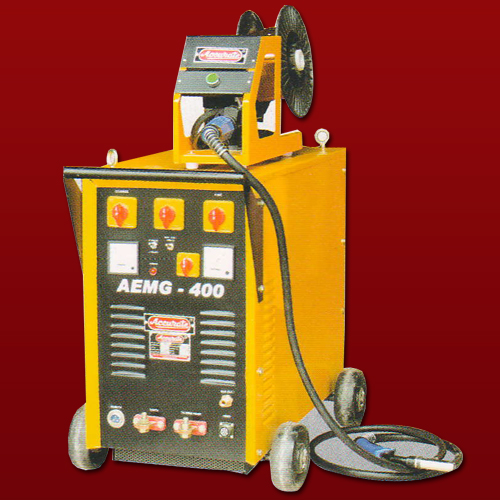

Mig Welding

Models AEMG - 400
In put Supply 415 Volts, 3 Phase 50Hz AC
Max welding current @ 60% 400 Amps.
Duty Cycle
Welding current range
Max open circuit voltage 18 to 54 Volts DC
Rating (KVA)
Cooling Forced Air
Suitable for wire Steel 0.8, 1.2, 1.6 mm
Weight 185 Kgs
Diamension (LxWx H) mm 840 x 500 x 750 mm.
No. of Voltage Setti 32
Insulation class

Diod Type Rectifier

Models Diod Type Welding Rectifier
In put Supply 415 Volts, 3 Phase 50Hz AC.
Max welding current @ 60% 400 Amps.
Duty Cycle
Welding current range 50 - 400
Max open circuit voltage 80 Volts DC
Rating (KVA) 26 KVA
Cooling Forced Air
Suitable for wire Steel
Weight 250 Kgs.
Diamension (LxWx H) mm 990 x 560 x 820 mm.
No. of Voltage Setti
Insulation class 'F'

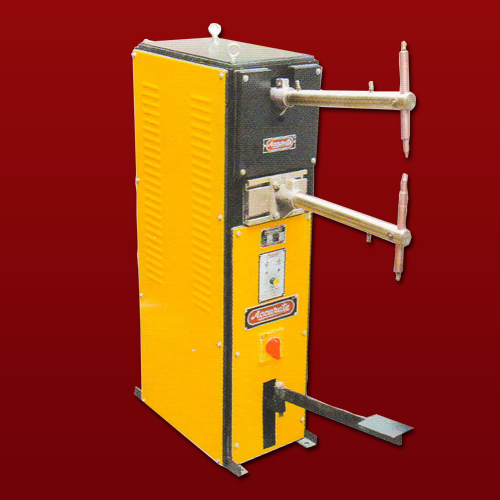

Spot Welding Machine

Models AE-6 AE-8 AE-10 AE-15 AE-20 AE-2 5 AE-30
Rating @ 50% Duty Cycle (KVA) 6 8 10 15 20 25 30
Standard Throat Depth 300 300 300 300 300 300 300
Nominal Throat Clearance (mm) 220 220 220 220 220 220 220
Welding Range
M.S. Sheet Max 2 x mm 1.6 1.8 2.0 3.0 3.25 3.5 4
Thickness Min 2 x mm 0.16 0.2 0.2 00.3 0.5 0.6 0.8
Brass to Copper Max. 2 x mm 0.6 0.7 1 1.5 1.6 1.6 1.8
Thickness Min. 2 x mm 0.1 0.1 0.1 0.2 0.2 0.3 0.4
S.S. Sheet Max. 2 x mm 1.6 1.8 2 2.8 3 3.5 4.0
Thickness Min. 2 x mm 0.2 0.2 0.2 0.3 0.3 0.6 0.8
lnsulation Class B B B B B B B
Cooling for Arms & Electrodes Water Water Water Water Water Water Water
Main Supply Voltage (V) 220/440 220/440 440 440 440 440 440
Phase (No.) 1/2 1/2 2 2 2 2 2
Delayed Action Fuse_(A) 15 20 25 30 45 50 70

Our Products(we sell)

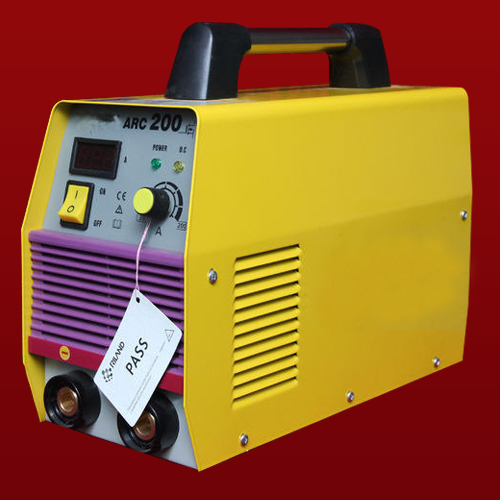

Mini ARC Welding Machines

Models ARC 200
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG) (KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395x153x301

Mini ARC Welding Machines

Models ARC 200
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG) (KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395x153x301

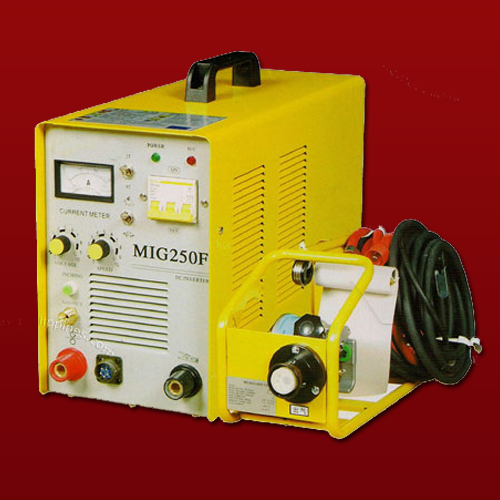

MIG 250 FMig Welding Machines

Models MIG 250 F
Weight (KG) 8
Dimensions (mm) 400x153x291

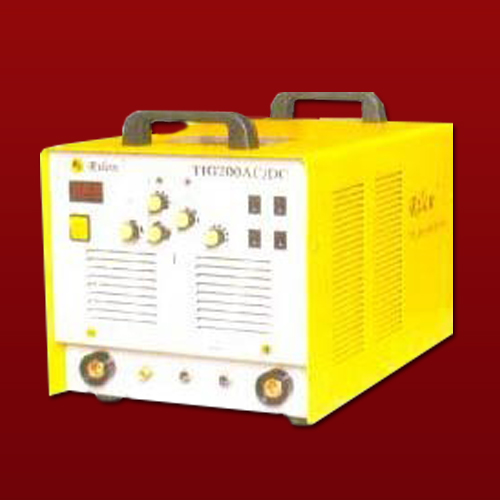

Argon Welding Machines

Models TIG 200 AC/DC and 250 AC/DC
Voltage 220V/380V
Arc Current 20-200A
Dimensions (mm) 428x228x226
Power 10 KVA

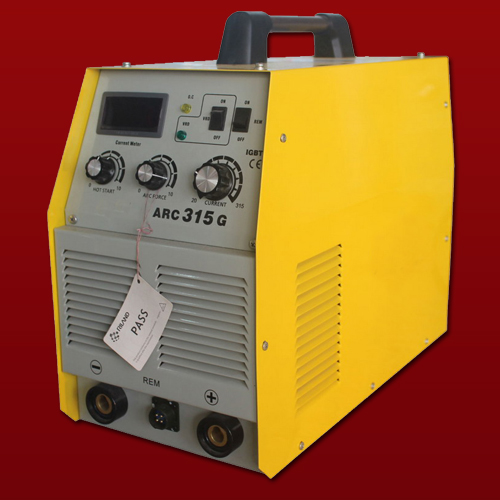

Welding Machine Arc-315 G

Models ARC 315 G
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG)(KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395 X 153 X 301

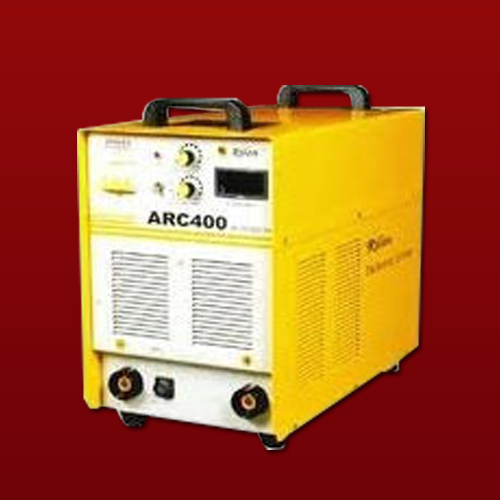

ARC Welding Machine

Models ARC-400 mos ARC-400 G ARC-400 IJ2
Category Tungsten inert gas (TIG) welding Inverter Tungsten inert gas (TIG) welding Inverter Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15% 1 Phase AC +/- 15% 1 Phase AC +/- 15%
Frequency (HZ) 50/60 50/60 50/60
Rated power at MAX Current (ARC/TIG)(KVA) 7.2/4.5 7.2/4.5 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160 20-160, 10-160 20-160, 10-160
Duty Cycle (%) 20-160, 10-160 20-160, 10-160 20-160, 10-160
Weight (KG) 9 9 9
Dimensions (mm) 395 X 153 X 301 395 X 153 X 301 395 X 153 X 301

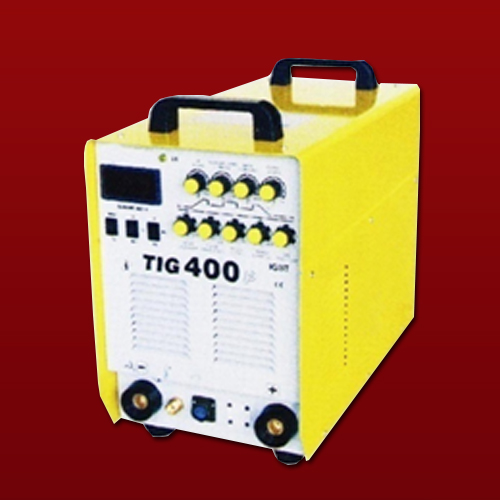

Arc welding Inverter

Models TIG 400D
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG)(KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395 X 153 X 301

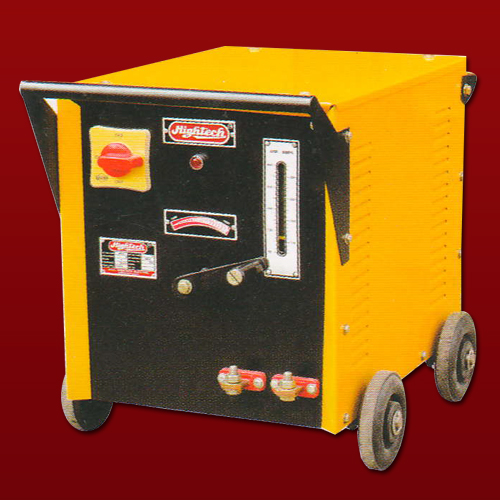

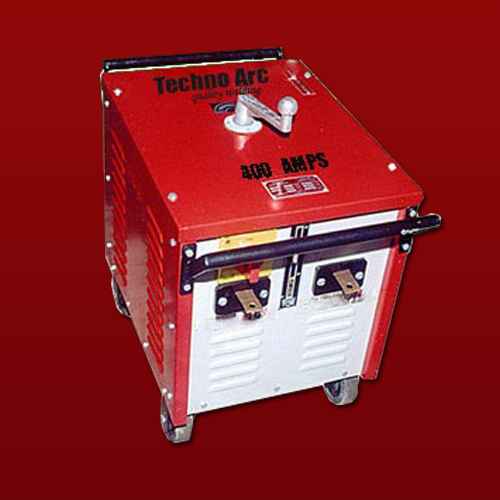

Regulator type Welding Machine

Models -
Rated power at MAX Current 250 / 600Amps
Longer service life
Trouble free performance
Low maintenance

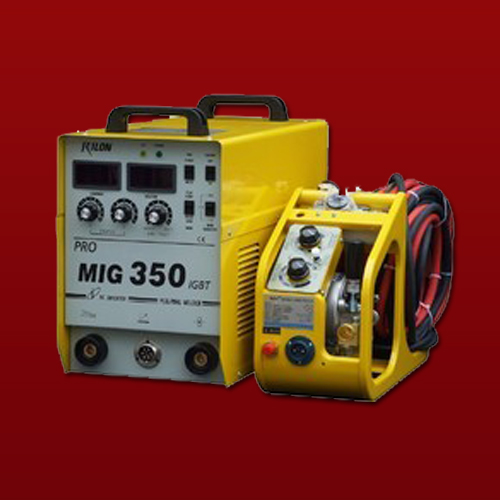

Welding Machine

Models MIG 350 and MIG 500
Longer service life
Flawless performance
Seamless finish

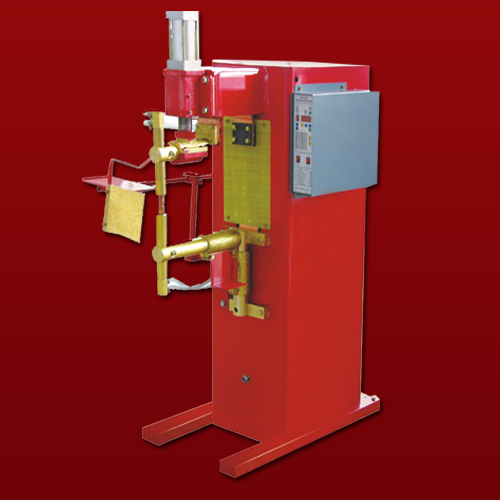

Spot Welding Machine

Model No. JKSP/8 JKSP/10 JKSP/12 JKSP/15 JKSP/20 JKSP/25
K.V.A. Rating 8 10 12 15 20 25
Main Supply 50 Cycles 230V of 1Ph 440 V
of 2 Ph
440 V
of 2 Ph
440 V
of 2 Ph
440 V
of 2Ph
440 V
of 2 Ph
Primary Current Nominal 15 A 15 A 25 A 37.5 A 50 A 60 A
Secondary Voltage 1.4-2.8V 1.4-2.8V 2-4V 2.15-5V 2.15-5 2.15-5V
Voltage Control Steps 6 6 6 6 6 6
Max Iron & Steel
Welding Thickness
1+1 1.1+1.1 1.3+1.3 1.6+1.6 2+2 2.4+2.4
Throat Depth 15" 15" 16" 16" 16" 16"
Throat Gap 9" 9" 9 1/4" 9 1/2" 9 1/2" 9"
Cooling Method Water Water Water Water Water Water
Duty Cycles 50% 50% 50% 50% 50% 50%

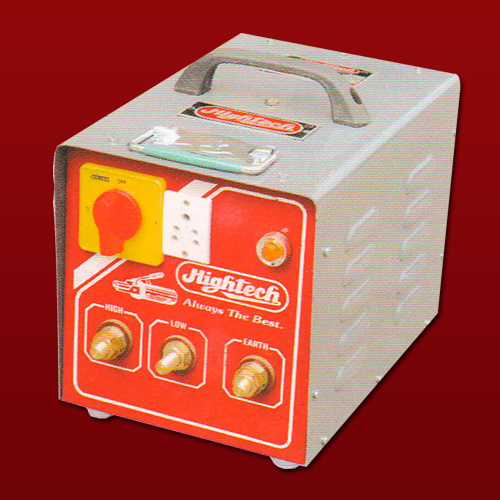

Stud Type Welding Machine

Model No. Stud-250 Amp Stud-300 Amp Stud-400 Amp

Welding Current

50-250 Amp

50-300 Amp

75-400 Amp

Open Circuit Voltage

52 V

58 V

62 V

Welding Electrode Range

3.15 mm

3.15 mm

3.15 mm Continue & 4 mm

Weight

38 kg

58 kg

68 kg

Supply Voltage

1+2 Phase

1+2 Phase

1+2 Phase

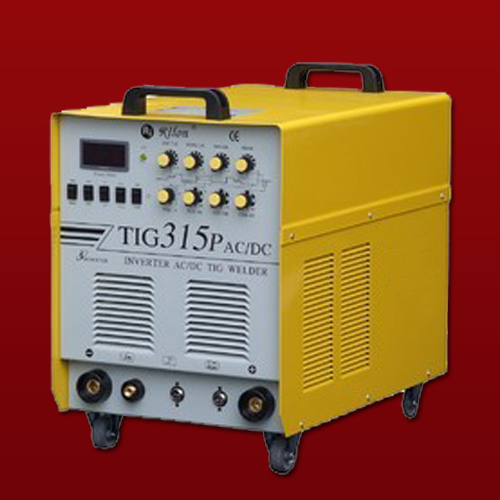

Inverter TIG Welding Machines

Product Name TIG 315 B AC/DC
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG)(KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395 X 153 X 301

Arc Welding (Saw) Machine

Product Name ARC 400 IJ
Category Tungsten inert gas (TIG) welding Inverter
Input voltage (V) 1 Phase AC +/- 15%
Frequency (HZ) 50/60
Rated power at MAX Current (ARC/TIG)(KVA) 7.2/4.5
Output Current (ARC/TIG) (A) 20-160, 10-160
Duty Cycle (%) 20-160, 10-160
Weight (KG) 9
Dimensions (mm) 395 X 153 X 301

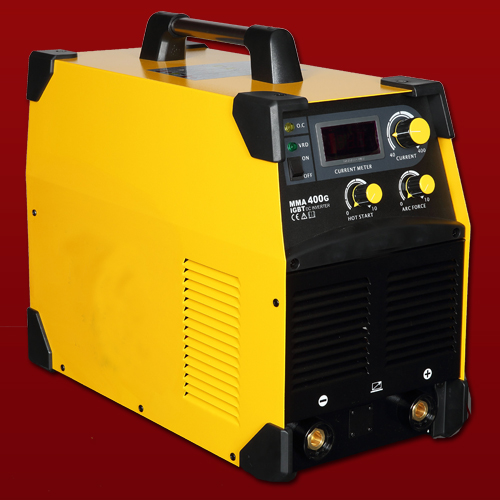

Welding Machine

Models MMA 400G IGBT
Suitable base material Carbon steel, Low alloy steel, Stainless steel
Energy efficiency reaches 80~85%
power factor can reach high as 0.93. Over 1/3
